Comprehensive Keyboard Test & Diagnosis

This online keyboard tester provides full keyboard diagnostic functions, specifically targeting common issues: key press interval detection, chattering, double‑click, wrong keys, response delay, and NKRO (full key rollover). Our professional detection algorithm helps you quickly locate problems and offers repair advice.

Key Press Interval

Measures the time between two presses of the same key. Automatically flags intervals below 80ms (red) as potential chattering, helping you diagnose debounce issues.

Chattering / Double‑click

Detects chattering caused by switch aging, contact oxidation, or dust. Counts press/release events and identifies sticky keys.

Response Delay

Real‑time measurement of key response time. Analyzes delays from Bluetooth interference, USB power issues, or system load – accurate to milliseconds.

NKRO (Full Key Rollover)

Tests your keyboard's NKRO capability – supports up to 36+ simultaneous keys. Real‑time display of concurrent key count.

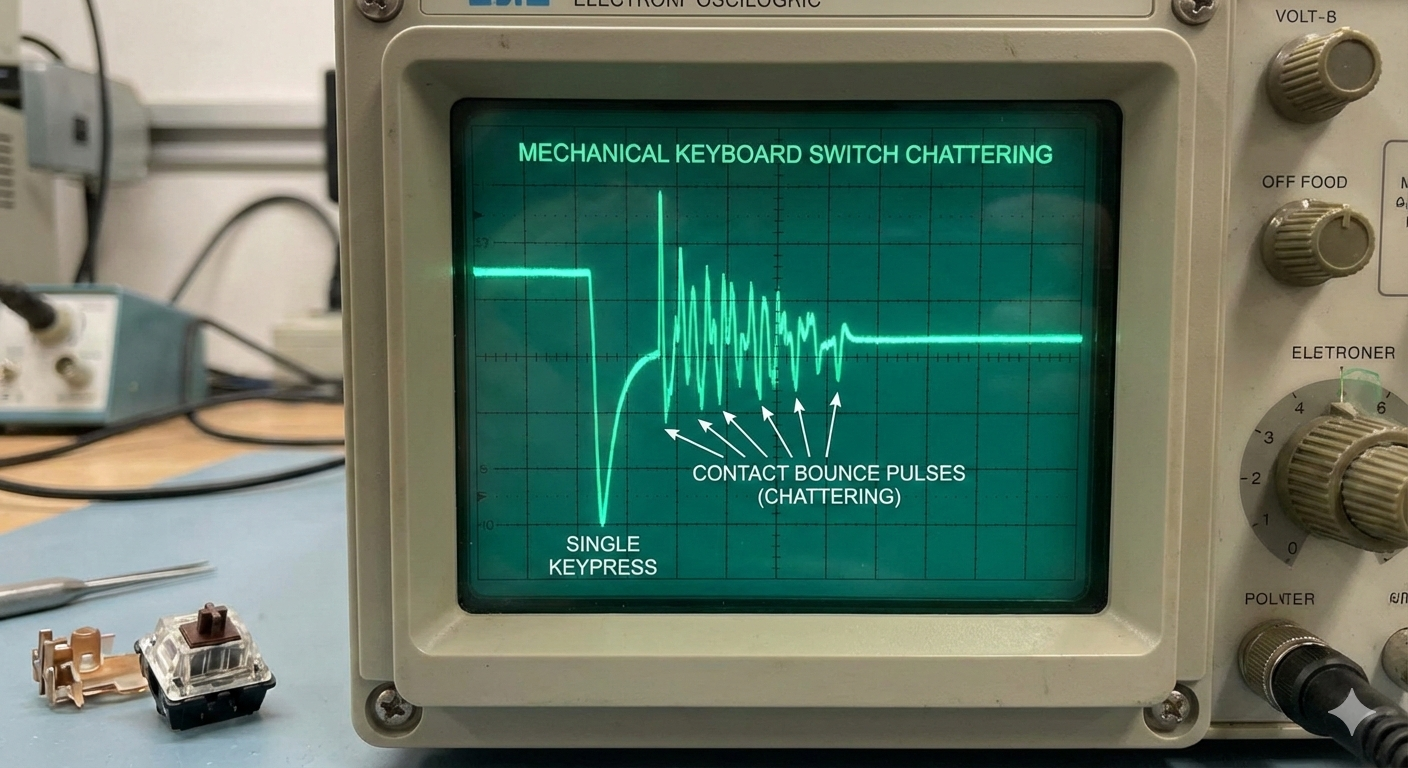

Diagram of mechanical switch contact bounce (chattering) – abnormal multiple pulses from a single press

Fig 1: Abnormal signal bounce caused by oxidized mechanical contacts (root cause of chattering)

Key Press Interval Detection: Diagnosing Chattering & Debounce Technology

Keywords: key press interval detection, chattering diagnosis, double‑click repair, keyboard debounce, key response time, mechanical switch bounce, key repeat rate test

What is key press interval detection and why is it important?

Key press interval detection is the core technology for diagnosing keyboard chattering and double‑click issues. By precisely measuring the time between two presses of the same key, you can identify the following problems:

Interval Possible Cause Diagnosis Repair Suggestion
<20ms Contact bounce, circuit failure, severe chattering Severe fault – needs immediate repair Replace switch, check circuit, professional service
20-50ms Moderate chattering, debounce failure, dust Moderate fault – affects user experience Clean switch, update firmware, adjust debounce
50-80ms Mild chattering, early switch aging Mild fault – monitor Regular cleaning, avoid heavy typing, backup keyboard
80-200ms Normal fast typing, gaming Normal range – human operation No action needed
>200ms Normal typing speed, cautious operation Normal range – safe No action needed

Keyboard Debounce Technology Explained

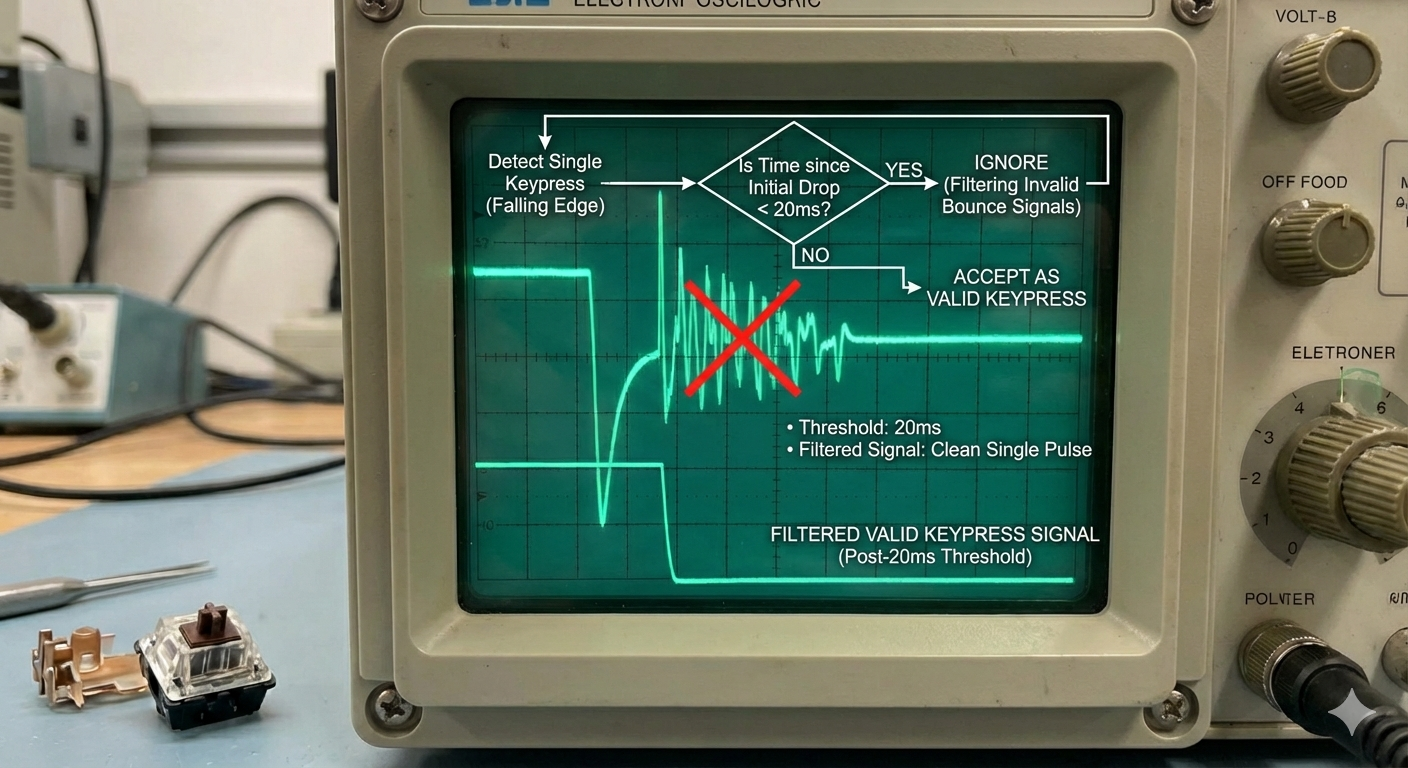

Diagram of keyboard debounce algorithm – filtering invalid bounce signals under 20ms

Fig 2: Firmware debounce algorithm filtering invalid contact bounces

Hardware Debounce

  • How it works: Uses RC circuits (resistor‑capacitor) to delay signal recognition and filter contact bounce
  • Response time: Typically 5‑20ms delay, ensuring stable detection
  • Advantages: Stable, no CPU usage
  • Disadvantages: Higher cost, limited response speed
  • Typical use: High‑end mechanical keyboards, gaming keyboards

How to test: Use this tool. If intervals shorter than the debounce time (e.g., 20ms) are still registered, hardware debounce may be failing.

Software Debounce

  • How it works: Driver or firmware delays key event processing
  • Response time: Widely adjustable, typically 10‑30ms
  • Advantages: Flexible, lower cost
  • Disadvantages: Uses system resources, may affect response speed
  • Typical use: Most membrane keyboards, mid‑range mechanical keyboards

How to test: Vary your typing speed and observe interval consistency. Large fluctuations may indicate poor debounce settings.

Common Causes & Fixes for Chattering

Mechanical Keyboard Chattering

Causes: Spring fatigue, oxidized contacts, dust accumulation, cracked solder joints

Repair steps:

  1. Clean internal contacts with isopropyl alcohol
  2. Replace faulty switch (low cost)
  3. Re‑solder loose joints
  4. Adjust keyboard debounce settings

Prevention: Regular cleaning, avoid liquids, use keycap dust covers

Membrane Keyboard Chattering

Causes: Worn conductive traces, deformed silicone domes, oxidized PCB, overall aging

Repair steps:

  1. Clean conductive traces and PCB contacts
  2. Replace worn silicone domes (if spares available)
  3. Use conductive silver paint to repair broken traces
  4. If widespread, replace the keyboard

Prevention: Gentle use, keep clean, avoid high temperature/humidity

Software/Driver Issues

Causes: Driver conflicts, OS settings, firmware bugs, power management

Repair steps:

  1. Update keyboard drivers and firmware
  2. Check OS power management settings
  3. Reset keyboard to factory defaults
  4. Test on another computer to isolate system issues

Prevention: Regular driver updates, backup settings, use stable OS versions

Reference Key Press Intervals

Professional typist
100-150ms
Average user
150-300ms
Gamer (high APM)
80-120ms
Chattering threshold
<80ms
Contact bounce range
1-20ms

Best Practices for Key Press Interval Testing

  1. Test regularly: Use this tool monthly, especially on frequently used keys (WASD, space, enter)
  2. Watch warnings: Red‑marked logs (interval <80ms) indicate potential issues – act early
  3. Establish baseline: Test a new keyboard to create a reference for future comparisons
  4. Track trends: Record interval changes over time to predict keyboard lifespan
  5. Repair promptly: Address chattering early to prevent further damage

Pro tip: For e‑sports players and heavy typists, perform a full key interval test every quarter to keep your keyboard in top shape.

How to Use the Keyboard Tester

This tool's key press interval function helps you diagnose chattering and double‑click issues. Follow these steps:

1

Start Interval Test

Quickly press the same key repeatedly (recommended: W, space, or enter). Watch the log panel – it records timestamps and calculates intervals automatically.

Key points:

  • Normal human interval is usually >100ms
  • Fast gamers may hit 80‑120ms
  • Intervals below 80ms are marked red, indicating possible hardware issue
2

Interpret the Log

The log shows detailed interval information:

  • White: normal (≥80ms)
  • Yellow: short (50‑79ms) – pay attention
  • Red: abnormal (<50ms) – likely fault
  • Dark red: severe (<20ms) – confirmed fault

Log format: [time] Key[key name] Interval:[time]ms [status]

3

Analyze Results

Use the log to assess keyboard health:

Observation Possible Issue Severity
Occasional red logs Mild chattering, early aging ★☆☆☆☆ Mild
Frequent red logs Moderate chattering – needs cleaning/repair ★★★☆☆ Moderate
Many <20ms intervals Severe chattering, debounce failure ★★★★★ Severe
Only specific keys Single switch/trace damaged ★★☆☆☆ Localized
All keys normal Keyboard is healthy ☆☆☆☆☆ Good
4

Take Action

Based on results:

  1. Mild: Clean regularly, monitor changes
  2. Moderate: Deep clean, consider repair
  3. Severe: Repair immediately or replace keyboard
  4. Localized: Replace single switch (mechanical) or targeted fix

Repair advice: Mechanical keyboards are worth repairing (cheap switch replacement). For membrane keyboards with widespread issues, replacement is often more practical.

Keyboard Testing FAQ

Why can key press interval detect keyboard faults?

Key press interval detection is based on these principles:

  1. Human limitation: The fastest intentional repetition of a single key by one finger is usually above 80ms.
  2. Mechanical constraint: Switches have physical rebound time – normal operation cannot bypass this.
  3. Debounce design: Keyboards delay signal recognition (5‑30ms) to filter contact bounce.
  4. Fault signature: Chattering produces abnormally fast, repeated signals due to oxidized contacts, spring fatigue, etc.

Therefore, intervals <80ms strongly suggest hardware failure rather than human operation.

When can sub‑80ms intervals be legitimate?

Rare cases where intervals below 80ms may be legitimate:

  • Alternating fingers: Using two fingers (e.g., index and middle) to rapidly press the same key can achieve 60‑80ms intervals
  • Special skill: Professional typists or pianists may have exceptional finger speed
  • Automated testing: Using macros or test tools
  • Accidental bump: Unintentional key touches

How to tell: Legitimate fast presses are usually rhythmic and controlled, while chattering is random and uncontrollable. Frequent <50ms intervals almost certainly indicate a keyboard fault.

How does chattering differ between mechanical and membrane keyboards?

The failure mechanisms differ:

Mechanical chattering

  • Causes: Oxidized internal contacts, spring fatigue, dust
  • Characteristic: Usually affects a single switch, replaceable
  • Interval: Typically 10‑50ms, fairly consistent
  • Fix: Replace switch (low cost, ~$1‑2)

Membrane chattering

  • Causes: Worn conductive traces, deformed domes, PCB oxidation
  • Characteristic: Often affects a region, difficult to repair
  • Interval: Fluctuates widely, 20‑80ms possible
  • Fix: Thorough cleaning or replace keyboard

Diagnostic difference: Mechanical chattering tends to be more consistent; membrane chattering more random. The log will show the pattern.

How to choose a repair based on interval measurements?

Select repair approach based on interval:

Interval range Severity Mechanical keyboard Membrane keyboard
70‑79ms Mild, early aging Clean switch, monitor Clean traces, avoid humidity
50‑69ms Moderate, needs attention Deep clean, consider switch replacement Professional cleaning, have spare keyboard ready
30‑49ms Severe, affects use Replace faulty switch immediately Consider replacement
<30ms Critical failure Check circuit, full repair Replace keyboard immediately

Cost consideration: Mechanical keyboards are worth repairing (cheap switch replacement). Membrane keyboards are often more economical to replace.

Start Your Keyboard Test Now

Is your keyboard suffering from chattering? Don't wait until it affects your work or gaming. Use our professional tester to measure key intervals and spot potential problems early.
